Hi all , How i can centered line graph to origine
Posted Nov 8, 2013, 8:27 a.m. EST 2 Replies
Please login with a confirmed email address before reporting spam
Hi all Comsol's users , i am a new user and still exploring the comsol.

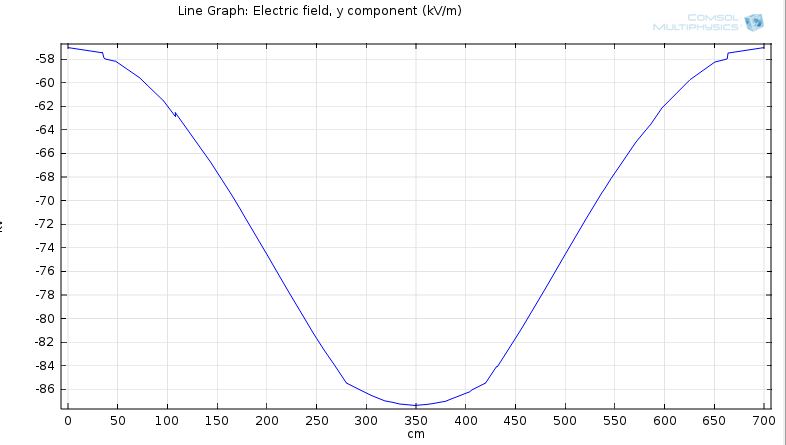

so, I want to center this line graph to (0,0) in attached picture.
so, I want to center this line graph to (0,0) in attached picture.
Attachments:
2 Replies Last Post Nov 11, 2013, 7:06 a.m. EST
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi
I had the same problem in the past and didnt manage to do it in COMSOL. What I did was exporting the data of the line graph then transform the X-axis values (by adding '-length/2.0' in all the values in the X-axis) then draw using plotting packages.
You can write 4 or 5 lines of code for this or if you are using MATLAB, origin .... its so simple .....just load the exported data then add '-length/2.0' to X-axis values
I had the same problem in the past and didnt manage to do it in COMSOL. What I did was exporting the data of the line graph then transform the X-axis values (by adding '-length/2.0' in all the values in the X-axis) then draw using plotting packages.
You can write 4 or 5 lines of code for this or if you are using MATLAB, origin .... its so simple .....just load the exported data then add '-length/2.0' to X-axis values
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Thanks for your reply , I will try it and back again.
