comparaison between magnetic simulation and theoraticall result

Posted Dec 4, 2013, 4:44 a.m. EST 0 Replies

Mohamed Hadj Said
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

HI everybody,

i do a simulation of rectangular planar coil to find the magnetic field, it's Ok but i had a probleme with the resut compared to the theoratical equation.

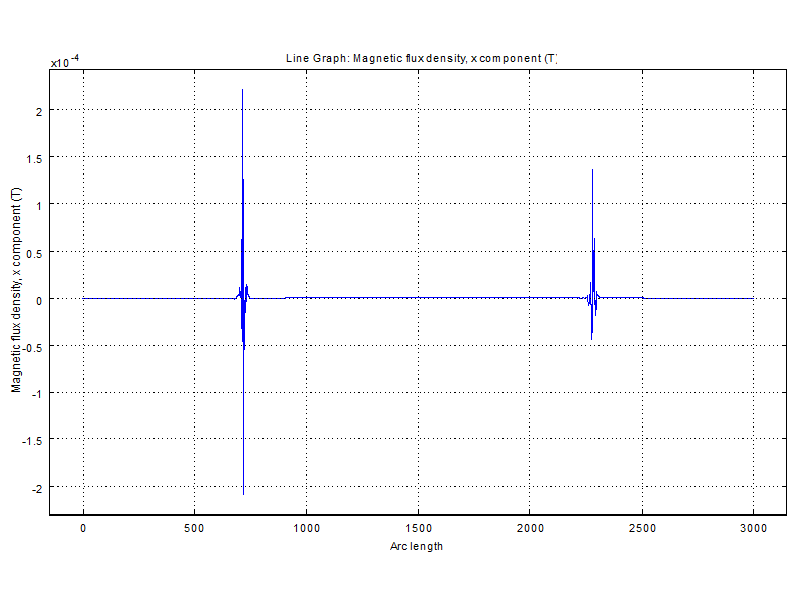

in comsol we shown that the component Bx in trhe middle plane of spiral is had à maximum and minimum in the bord different to the figure found by the theoric equation (minimum in the left , maximum in the right) so this is in relation of the bord effect or what exactly???

thanks for your help
Cheers

Attachments:

0 Replies Last Post Dec 4, 2013, 4:44 a.m. EST
