Pressure change with time

Posted Apr 1, 2014, 7:43 a.m. EDT Fluid & Heat, Computational Fluid Dynamics (CFD) Version 4.3b 0 Replies

Wei Chen
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi everyone,

I have a problem like this:

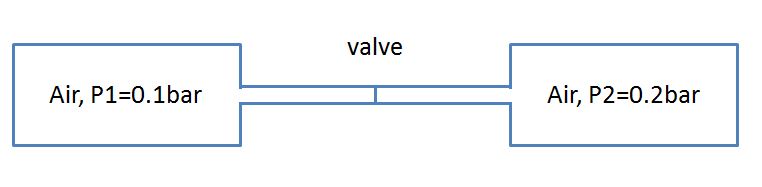

Two big container are linked with a thin tube, there is a valve at the middle of the tube.
At time t<0, The containers are filled with air but at different pressure. At time t=0, the valve is opened.
I want to know the time dependence of pressure distribution of the containers and tube.
A simple drawing is given in the attached picture.
Can anyone tell me which model should I choose and how to define the boundary of valve?

Thanks a lot

Wei

Attachments:

0 Replies Last Post Apr 1, 2014, 7:43 a.m. EDT
COMSOL Moderator

Hello Wei Chen

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
