Streamline: Magnetic Flux Density

Posted May 20, 2014, 9:42 a.m. EDT Low-Frequency Electromagnetics, Materials Version 4.4 0 Replies

Thomas Bender
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi @ All
i am new in the simulation with Comso and have a problem with presentation of Streamline Magnetic Flux Density. I have made a model with a coil and a "C" ferrite core.

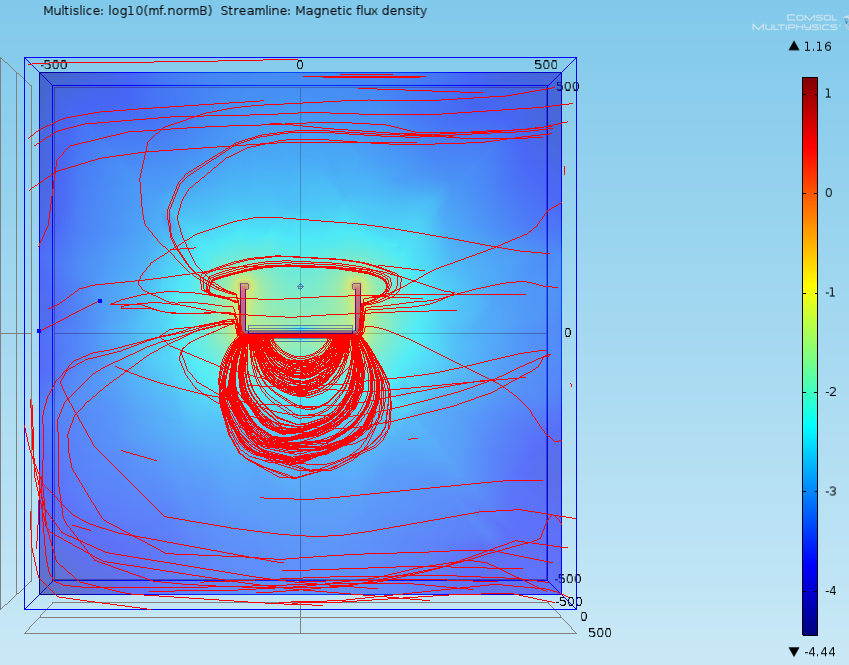

Unfortunately, the result does not look as expected. (see attached picture)
The steam lines should still be directly between the surfaces 27 and 32 (end faces of the coil core) or am I wrong? It would be nice if a professional ;) could view the model and can give me a hint.
Thanks for your help

cya Thommy
