Problem by generating a mesh
Posted Jun 4, 2014, 4:28 a.m. EDT Computational Fluid Dynamics (CFD) Version 4.4 0 Replies
Please login with a confirmed email address before reporting spam
Firstly I want to say that I am a total beginner in COMSOL.

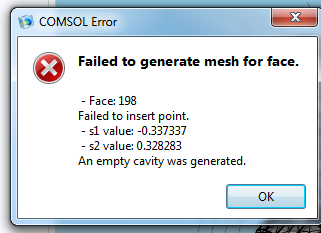

I got an WEY-piece and shall simulate a flow (of air) through this piece. I chose the k-omega turbulent flow physics, then imported the geometry by an .stl file and generated an physic-controlled mesh. Unfortunately I got the attached error message and I am a bit helpless.
I guess it is a problem with the model, because I can not see a mesh over every part of the model.
I wanted to attach the model too but I got an error at the try "file extension error"
So here is the file in an dropbox folder: www.dropbox.com/s/pclupnzz4lniupm/Y-WAY_875_flow_merged_2.stl
I hope anyone can help me
Best wishes
Benedikt
