Drawing a circular array
Posted Apr 9, 2010, 2:00 p.m. EDT 3 Replies
Please login with a confirmed email address before reporting spam
Dear all,

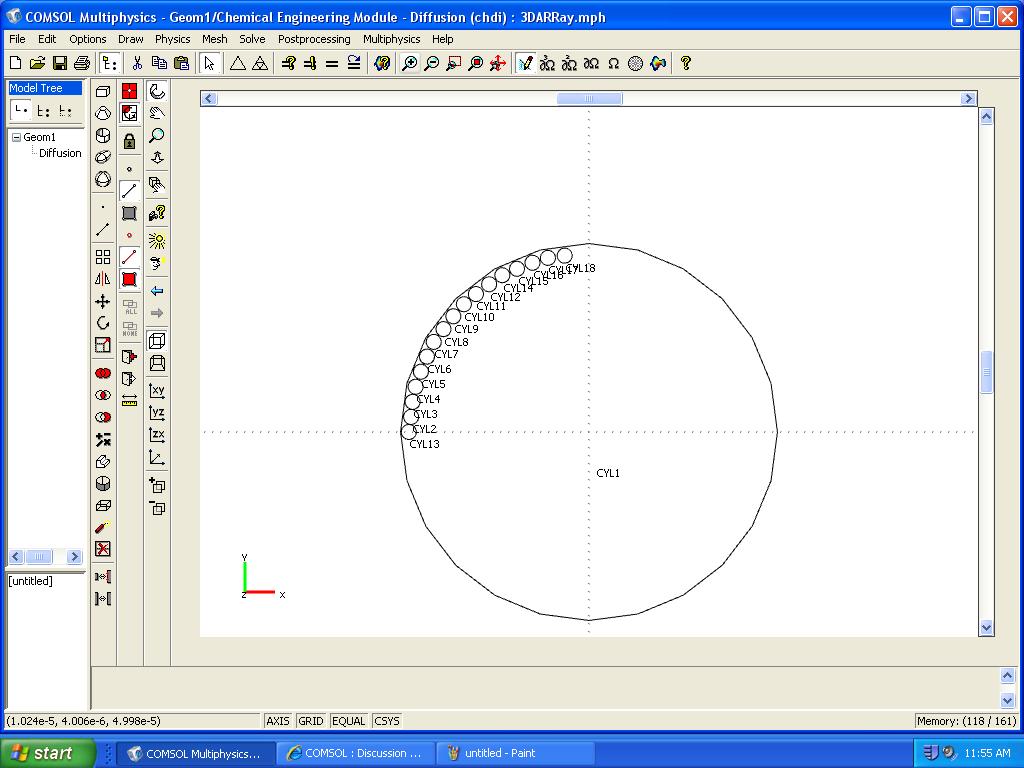

I want to draw a circular array inside a big circle. I did this with fairly big circles manually. But it is very difficult to do with small circles. Do you have an any idea of doing this automatically with comsol.
I have attached the drawing I want to do.
I want to draw a circular array inside a big circle. I did this with fairly big circles manually. But it is very difficult to do with small circles. Do you have an any idea of doing this automatically with comsol.
I have attached the drawing I want to do.
Attachments:
3 Replies Last Post May 20, 2014, 3:39 p.m. EDT
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
en.wikipedia.org/wiki/Packing_problem#Circles_in_circle
is this this that you want to do?
filling a big circle with small circle is a complex and old problem
there is no easy way to do it !
sorry
is this this that you want to do?
filling a big circle with small circle is a complex and old problem
there is no easy way to do it !
sorry
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Dear Jean,
Thank you for your reply and the explanation. I understood the problem's complexity.
Thanks Again.
Manjula
Thank you for your reply and the explanation. I understood the problem's complexity.
Thanks Again.
Manjula
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hey,
Just go to Transform - > Rotate. Set up an input object and specify a rotation angle with the range and a step. Hit build selected.
Cheers,
Olzhas
Just go to Transform - > Rotate. Set up an input object and specify a rotation angle with the range and a step. Hit build selected.
Cheers,
Olzhas
