Fluid U-flow in a cylindrical tube

Posted Oct 28, 2014, 3:55 a.m. EDT Fluid & Heat, Modeling Tools & Definitions, Parameters, Variables, & Functions, Results & Visualization 0 Replies

Samagra Kumar
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

I am trying to model a U type fluid flow through a cylindrical tube. But every time while computing, it shows this error,
" Failed to find a solution.
Maximum number of Newton iterations reached.
Returned solution is not converged."

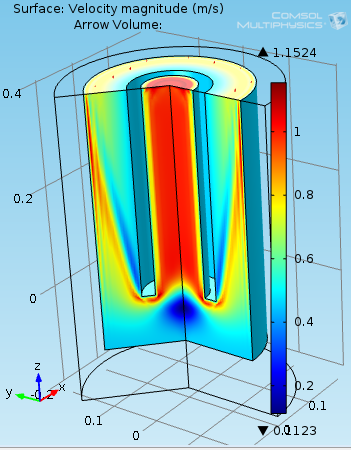

Please help me with this.( the result which i am getting is like this )

And when I tried to change the iteration number, the flow profile is changing very differently.
What is the role of "iteration number" in flow model results?

Attachments:

0 Replies Last Post Oct 28, 2014, 3:55 a.m. EDT
COMSOL Moderator

Hello Samagra Kumar

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
