Cut plane velocity field streamline problem

Posted Dec 7, 2014, 8:35 p.m. EST Version 4.0 0 Replies

Chao Liu
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

This might be a stupid question to you. I am new to Comsol so I have a lot of questions .

I am making a very simple laminar flow in a square cross-section pipe. I created a cut plane to plot the streamline of the velocity. But the plot I have is just some parallel line.

Sorry that I am new to Comsol and microfuidic, I could not analyze it. Is that normal. Shouldn't the streamline show the geometry of the velocity like the surface plot? Or the plot I am looking for is contour instead of streamline?

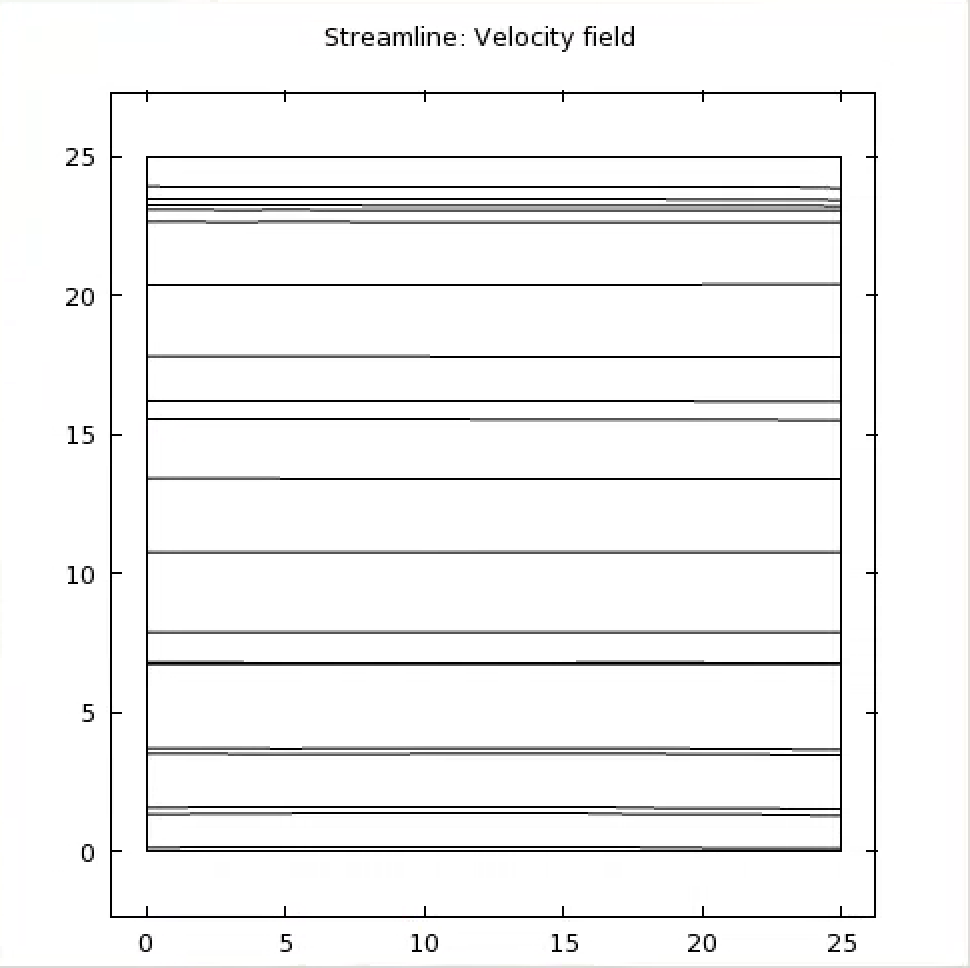

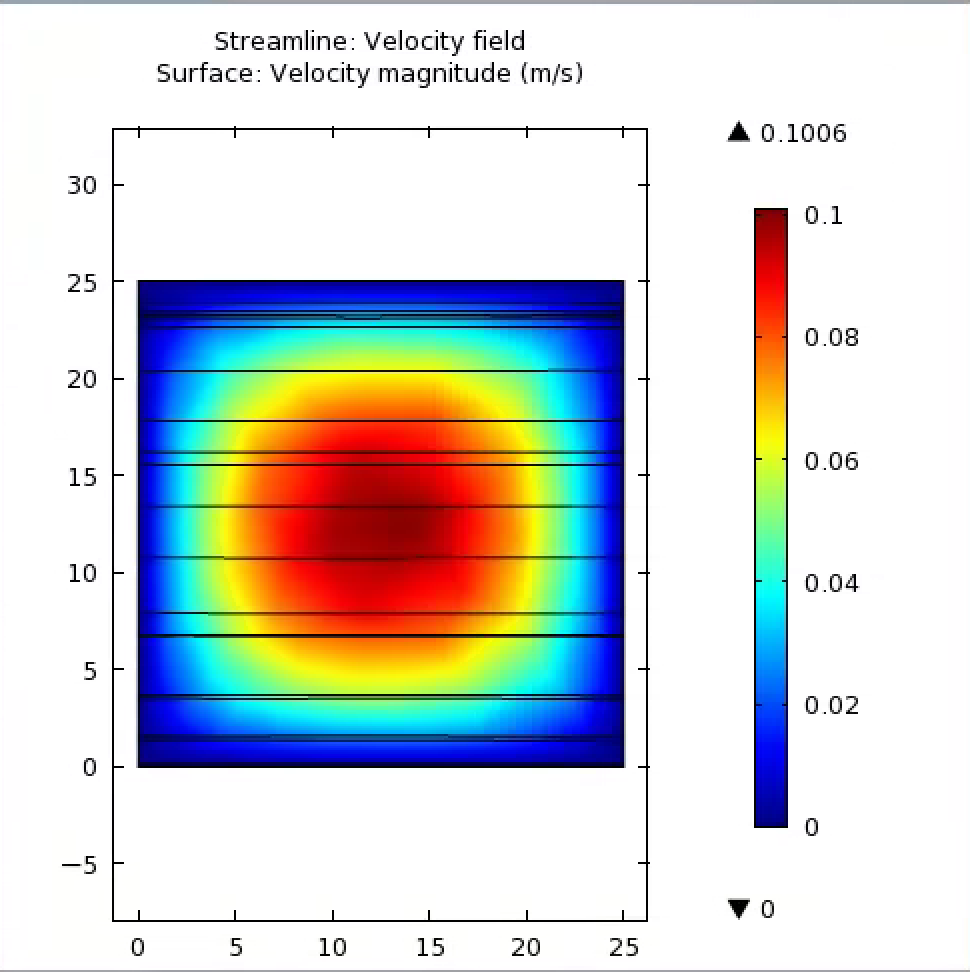

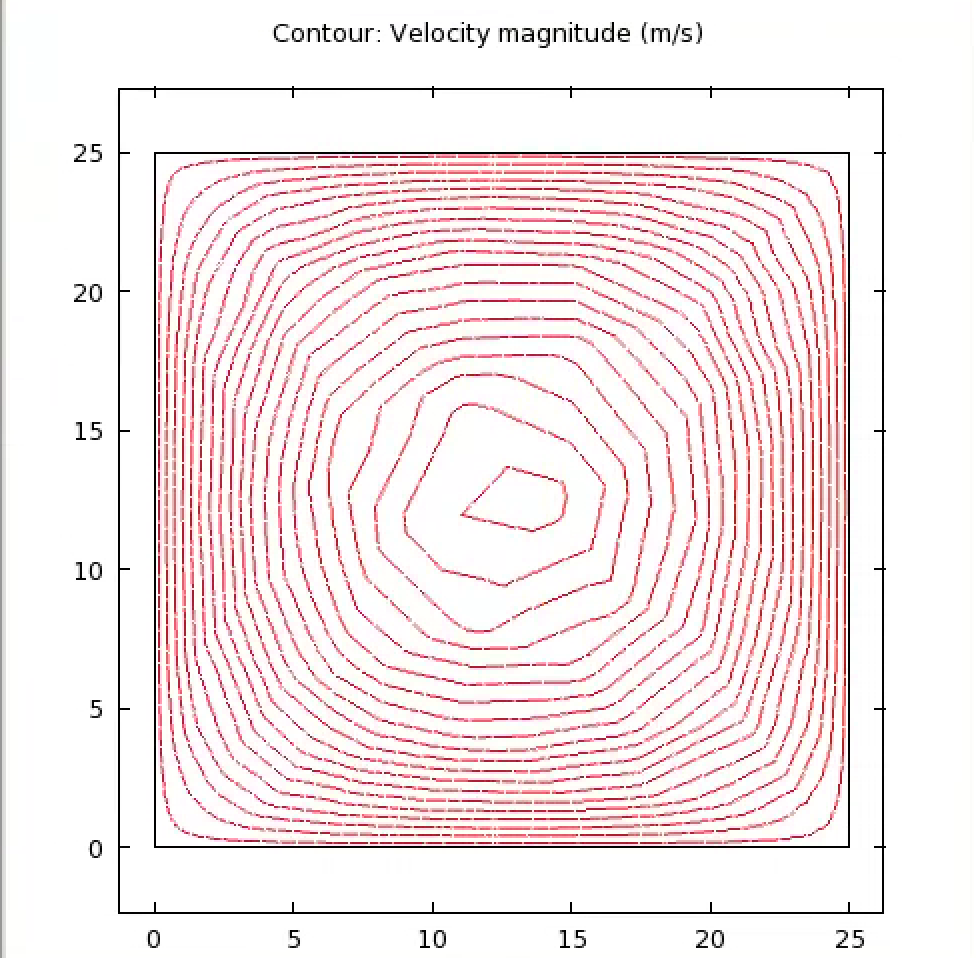

I attached the images of the streamline, contour and surface of the cut plane.
