meshing

Posted Mar 23, 2015, 7:49 a.m. EDT 3 Replies

Anangi Anil
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

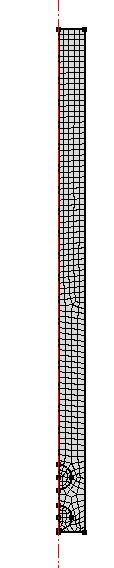

i want mesh it with 15x150 quadrilaterals can any body help me out for uniform meshing

Attachments:

3 Replies Last Post Mar 25, 2015, 11:00 a.m. EDT
Josh Thomas Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago Mar 23, 2015, 10:56 a.m. EDT
Sounds like you'd like to do a "Mapped" mesh operation, but unfortunately your geometry is not conducive to this. The finite element mesh must have vertices that fall on the curved arc. The mapped operation has the restriction that the shape of the domain must be a relatively regular in shape.

Why do you need a uniform mesh?

--
Best regards,
Josh Thomas
AltaSim Technologies
Sounds like you'd like to do a "Mapped" mesh operation, but unfortunately your geometry is not conducive to this. The finite element mesh must have vertices that fall on the curved arc. The mapped operation has the restriction that the shape of the domain must be a relatively regular in shape. Why do you need a uniform mesh? -- Best regards, Josh Thomas AltaSim Technologies
Anangi Anil
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago Mar 24, 2015, 1:32 a.m. EDT
thanks for your reply.. i am validating a paper which has 15x150 quadrilateral meshes , but i m unable to get those meshes because of the curvature of bubbles..
thanks for your reply.. i am validating a paper which has 15x150 quadrilateral meshes , but i m unable to get those meshes because of the curvature of bubbles..
Jens Krause
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago Mar 25, 2015, 11:00 a.m. EDT
You could the "edge group" feature in mapped mesh to mesh the region.

Is that what you need?

Regards

Jens
You could the "edge group" feature in mapped mesh to mesh the region. Is that what you need? Regards Jens
