magnetic field surrounding a permanent magnetic block

Posted May 15, 2015, 4:59 p.m. EDT Low-Frequency Electromagnetics, Mesh, Modeling Tools & Definitions, Parameters, Variables, & Functions Version 4.3 2 Replies

Susie Sen
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,
I'm building a COMSOL modeling to simulate the magnetic distribution of a magnetic block. I drawn a box (stands for the magnetic block )and another larger box to contain the magnetic block (stands for air surrounding the block). In the Materials setting, I put value of 1 for relative permeability for both the domain. I choose Remanent flux density in Magnetic Flux Conservation to calculate the magnetic field.

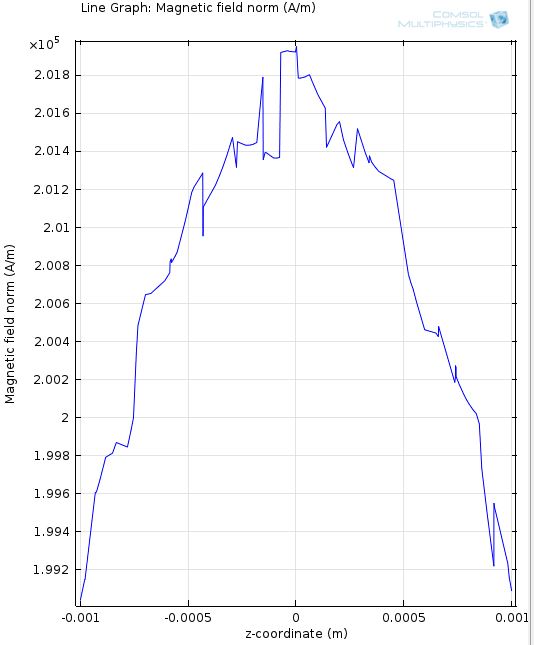

What I need is the plotting of magnetic field along z direction. I got a plot, but the problem is that the curve I got is not smooth at all (as shown in the attached picture). I'm not sure if these "oscillation" are from insufficient mesh size( Extremely fine meshes were already used) or mistake setting somewhere.

Could someone help me with this problem, please. Thanks!

Susie

Attachments:

2 Replies Last Post May 17, 2015, 9:16 p.m. EDT
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago May 15, 2015, 5:47 p.m. EDT

Hi Susie,

well, the roughness is pretty small, only in the order of 0.1 % of the absolute value. If you scale the plot from 0 to 2.02e5 A/m the curve will look almost perfectly smooth. If you need higher precision you could try to tighten the convergence criterion of the solver or change to higher order discretization. Default is 2nd order (quadratic) in most modules. So you could try changing it to 3rd order (cubic). Of course this is not for free, it will cost computation time and memory. You could also try to optimize the mesh. Try structured meshes instead of the default free tetrahedral.
But consider first: Do you really need better than 0.1% smoothness?

Cheers
Edgar

--
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Hi Susie, well, the roughness is pretty small, only in the order of 0.1 % of the absolute value. If you scale the plot from 0 to 2.02e5 A/m the curve will look almost perfectly smooth. If you need higher precision you could try to tighten the convergence criterion of the solver or change to higher order discretization. Default is 2nd order (quadratic) in most modules. So you could try changing it to 3rd order (cubic). Of course this is not for free, it will cost computation time and memory. You could also try to optimize the mesh. Try structured meshes instead of the default free tetrahedral. But consider first: Do you really need better than 0.1% smoothness? Cheers Edgar -- Edgar J. Kaiser emPhys Physical Technology http://www.emphys.com
Susie Sen
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago May 17, 2015, 9:16 p.m. EDT
Hi Edgar,
Thank you so much!
I changed the order of discretization. It did take longer for the computation, but I got much better looking plot now. Thanks for your suggestion.

Susie
Hi Edgar, Thank you so much! I changed the order of discretization. It did take longer for the computation, but I got much better looking plot now. Thanks for your suggestion. Susie
