Shared Boundary Problem

Posted May 23, 2015, 9:08 a.m. EDT Low-Frequency Electromagnetics, RF & Microwave Engineering, Geometry, Modeling Tools & Definitions, Parameters, Variables, & Functions Version 5.0 3 Replies

Muneeb Ahmed Khan
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

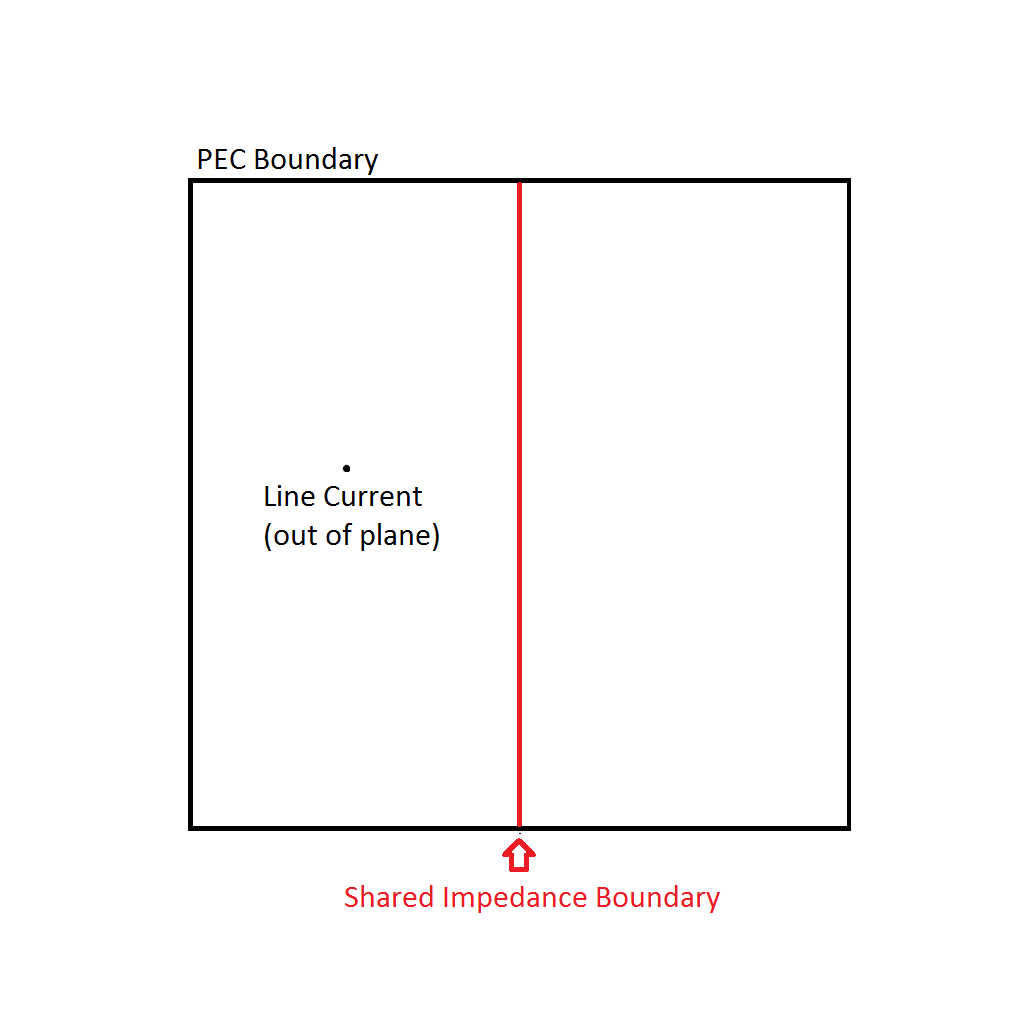

Hi, I am kind of new to COMSOL. I am working on impedance meta surfaces. My 2D geometry consists of two identical rectangles which share one common impedance boundary. I cannot figure out how do I have two objects which can have a shared impedance boundary which I will define using impedance boundary condition. What I have done so far is:
1) Create first rectangle with a line current as Union since the line current lies in the first rectangle.
2) Create second rectangle and used form assembly.
Help is much appreciated.

Attachments:

3 Replies Last Post May 25, 2015, 10:45 a.m. EDT
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago May 24, 2015, 10:20 a.m. EDT

The impedance BC is for external boundaries only. For your application you should try the transition BC.

Cheers
Edgar

--
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
The impedance BC is for external boundaries only. For your application you should try the transition BC. Cheers Edgar -- Edgar J. Kaiser emPhys Physical Technology http://www.emphys.com
Muneeb Ahmed Khan
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago May 25, 2015, 8:10 a.m. EDT
Hi, Thank you for your reply. Can I use transition boundary condition as Impedance boundary condition? Because I need to use the equation which is specified in the impedance boundary condition. I am simulating negative refraction using impedance conjugating surfaces.
Here is my model file
Hi, Thank you for your reply. Can I use transition boundary condition as Impedance boundary condition? Because I need to use the equation which is specified in the impedance boundary condition. I am simulating negative refraction using impedance conjugating surfaces. Here is my model file

Attachments:

Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago May 25, 2015, 10:45 a.m. EDT

I suggest you check the equations in the documentation and decide whether they are appropriate for your task.

--
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
I suggest you check the equations in the documentation and decide whether they are appropriate for your task. -- Edgar J. Kaiser emPhys Physical Technology http://www.emphys.com
