Obtaining length and width values from a heat plume in a geothermal doublet reservoir simulation

Posted Jun 18, 2015, 4:39 a.m. EDT Heat Transfer & Phase Change, Porous Media Flow, Results & Visualization Version 5.0 3 Replies

Karel Goense
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

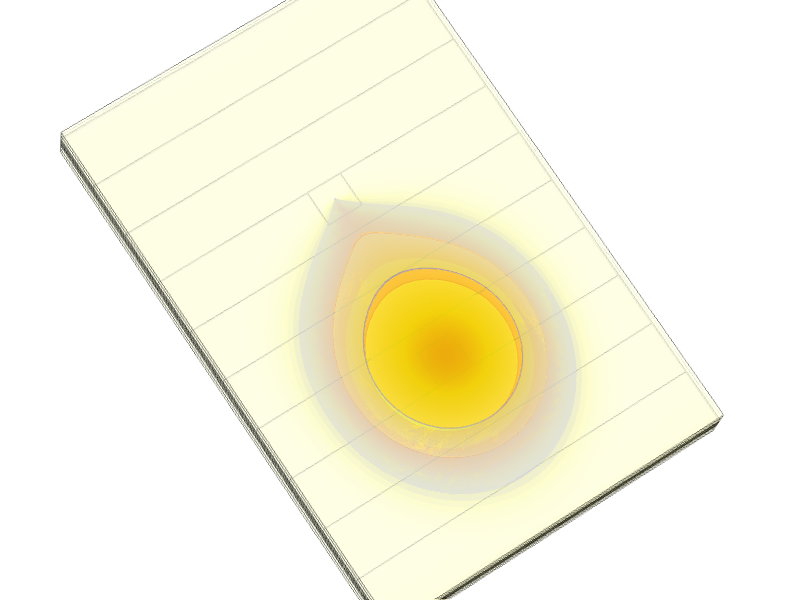

I have created a reservoir with two wells (injection and extraction) and I am observing how cold water injected at one well reaches the initial warmer temperature at the other well. I am trying to extract data that tells me how the width and length (or simply area) of the temperature plume differs over time. So basically a time vs Temperature plot for the width and length of my plume.

Anyone any suggestions to how I could tackle this problem?

Thanks!

Karel
3 Replies Last Post Apr 29, 2017, 8:08 a.m. EDT
Frank van Gool COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 9 years ago Jun 19, 2015, 5:51 a.m. EDT
Dear Karel,

In COMSOL you can compute a volume / surface integral, in which you can put your own expression.

For example if you want to find the volume of the plume, you could integrate over the whole domain the expression: "T>300". This will count the volume where the temperature is higher than 300 K.

To find the area of the plume, you could integrate this expression on a surface with a surface integral. You can then select one of the cross sections in your domain or create one yourself.

The attached file shows the implementation in 4.4.

Best regards,
Frank
Dear Karel, In COMSOL you can compute a volume / surface integral, in which you can put your own expression. For example if you want to find the volume of the plume, you could integrate over the whole domain the expression: "T>300". This will count the volume where the temperature is higher than 300 K. To find the area of the plume, you could integrate this expression on a surface with a surface integral. You can then select one of the cross sections in your domain or create one yourself. The attached file shows the implementation in 4.4. Best regards, Frank
Karel Goense
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago Jun 26, 2015, 9:36 a.m. EDT
Frank,

Thanks a lot!

I got it all worked out now.

Karel
Frank, Thanks a lot! I got it all worked out now. Karel
Harish Puppala
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago Apr 29, 2017, 8:08 a.m. EDT
Hi Karel, have you considered a 3 dimensional problem or a 2D. Can you share the mph file. I would like to know how you resolved this problem. Even I am working on the similar problem what you addressed.
Hi Karel, have you considered a 3 dimensional problem or a 2D. Can you share the mph file. I would like to know how you resolved this problem. Even I am working on the similar problem what you addressed.
