Construction in 3D

Posted Oct 7, 2015, 3:23 p.m. EDT Geometry Version 4.4 3 Replies

Lukas Varacka
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

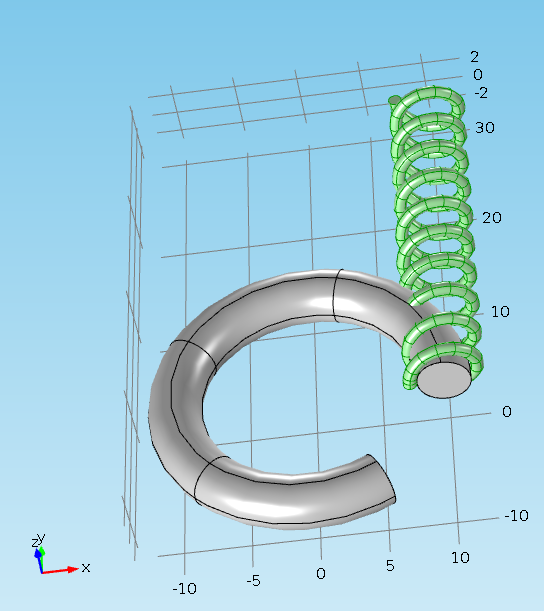

I have one maybe trivial problem.. How can I curve helix around any construction or angle in 3D model? In attached picture it is around siple "C" solid (300°) for instance. Or is this specific case to do faster by 2D workplane?

Attachments:

3 Replies Last Post Oct 9, 2015, 11:16 a.m. EDT
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 9 years ago Oct 8, 2015, 4:41 p.m. EDT
You can build the geometric shape you wish by sweeping a disc along a suitably constructed parametric curve.
Best,
Jeff
You can build the geometric shape you wish by sweeping a disc along a suitably constructed parametric curve. Best, Jeff
Lukas Varacka
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago Oct 9, 2015, 9:23 a.m. EDT

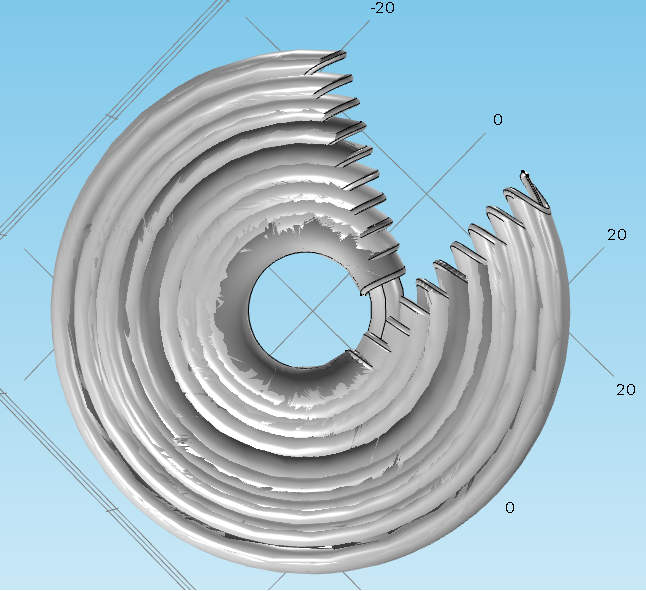

Thank you for response, Jeff. Of course I think so It has to be done by sweep, but I´m doing something wrong. I´m trying to follow this spring by edge of inner circle and the result you can see in attached picture.
Thank you for response, Jeff. Of course I think so It has to be done by sweep, but I´m doing something wrong. I´m trying to follow this spring by edge of inner circle and the result you can see in attached picture.

Attachments:

Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 9 years ago Oct 9, 2015, 11:16 a.m. EDT
Please post the .mph file.
Jeff
Please post the .mph file. Jeff
