unexpected unit of input in solid mechanic

Posted Nov 19, 2015, 8:02 p.m. EST Modeling Tools & Definitions, Parameters, Variables, & Functions 3 Replies

Chi Chen
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

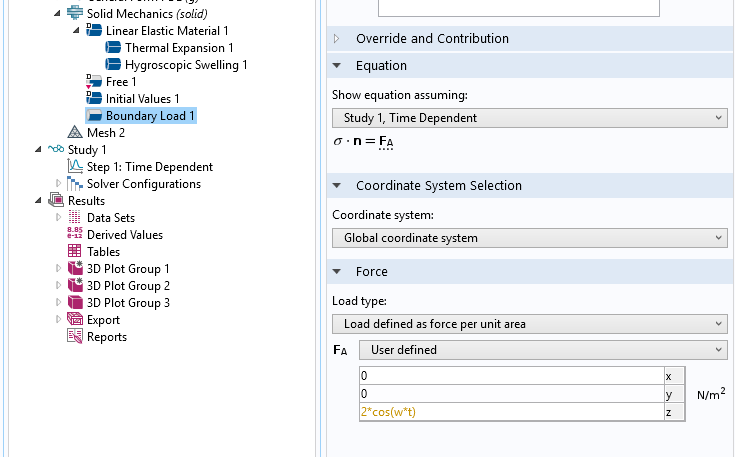

Hello, all. I want to simulate dynamic problem with adding physics of "solid mechanic" and study of " time-dependent". I want to setup boundary load with 25*sin(w*t), where "w" is frequency, which is 0.75 [s-1]; however, it show "unexpected unit of input".
Did anyone one know what unit is conflict with time ( t[s] ) in solid mechanic?

Attachments:

3 Replies Last Post Sep 18, 2016, 5:55 a.m. EDT
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 9 years ago Nov 20, 2015, 8:39 a.m. EST
Careful! In 3D, by default, w is the displacement in the z direction, and its dimension is a length. Better pick some other name for your angular frequency!
Besides, 2*cos(omega*t) is a scalar, whereas 2[N/m^2]*cos(omega*t) is a pressure.
Jeff
Careful! In 3D, by default, w is the displacement in the z direction, and its dimension is a length. Better pick some other name for your angular frequency! Besides, 2*cos(omega*t) is a scalar, whereas 2[N/m^2]*cos(omega*t) is a pressure. Jeff
Chi Chen
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago Feb 2, 2016, 3:14 p.m. EST
got it, the problem has been figured out. Thanks

Best regard
got it, the problem has been figured out. Thanks Best regard
Mohamed Bahri
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago Sep 18, 2016, 5:55 a.m. EDT
Hi
using the version 5.2, in the variable expression i try to use sinh(phi) or cosh(phi) and give them a name , the unit of (phi) is the volt wich is the variable of electrostatic module, but the color is orange and show ''unexpected unit of input'' so i can't use it in boundary condition ad i can't solve my problem
Appreciate much for your help!!
Hi using the version 5.2, in the variable expression i try to use sinh(phi) or cosh(phi) and give them a name , the unit of (phi) is the volt wich is the variable of electrostatic module, but the color is orange and show ''unexpected unit of input'' so i can't use it in boundary condition ad i can't solve my problem Appreciate much for your help!!
