Diffusion-Controlled Dendrite Formation Using the Level Set Method
Application ID: 87791

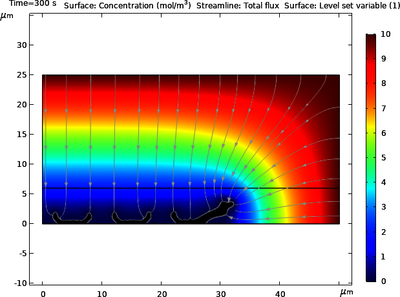

The present model demonstrates diffusion-controlled electrodeposition of copper on microstructured band electrode arrays (MEA). Mass transport by Fickian diffusion of copper ions is solved using the Transport of Diluted Species interface. Dendrite formation as a consequence of diffusion-controlled electrodeposition is captured using the Level Set interface. The electrodeposition velocity is prescribed in terms of diffusive flux in the model. The dendrite formation is found to be more predominant for the peripheral electrode in MEA when compared to the inner electrodes in MEA.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
- COMSOL Multiphysics® and
- either the CFD Module, Corrosion Module, Electrodeposition Module, Microfluidics Module, or Polymer Flow Module
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
