Four-Point Bending Test of an IGBT Module
Application ID: 124181

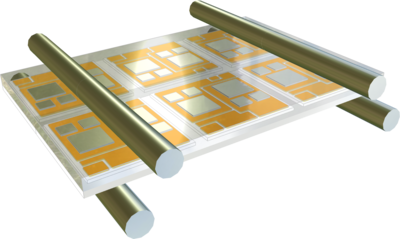

The four-point bending test is a conventional test method used to test the mechanical properties of materials subjected to bending. It is a reliability test used for semiconductor packaging and assembly. This model demonstrates the stress analysis of an IGBT module subjected to a four-point bending test.
The test condition is based on the Standard BS ISO 23212: 2020.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
