Multipactor Saturation
Application ID: 22111

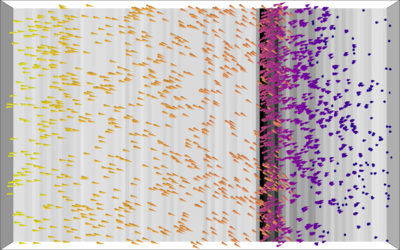

Multipaction can occur when electrons are accelerated by a high frequency RF field into surfaces. At certain frequencies, the number of electrons in a cavity can grow exponentially. This exponential growth cannot continue indefinitely because space charge effects in the cavity can prevent electrons from hitting the walls at sufficiently high energy, eventually causing the number of electrons in the cavity to reach dynamic equilibrium. This effect is called multipactor saturation. In this example, multipactor saturation is modeled in a parallel-plate waveguide.
This example requires the Particle Tracing Module.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
