Optimization of a Truss Tower
Application ID: 90341

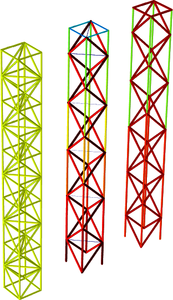

Gradient based optimization is an efficient way of computing better values for many control variables. This example optimizes diameters of individual members in a truss structure such that the structure becomes stiffer without adding mass to the structure. The structure will be only be stiff for the considered load cases, and in this cases it turns out that one has to use at least 3 load cases to get a sensible design. Finally, the model demonstrates how the optimized design can be modified so that the tower can be built using just 3 types of members.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
