Optimization of a Waveguide Iris Bandpass Filter — Transformation Version
Application ID: 101271

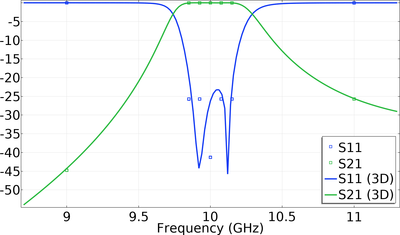

A waveguide filter is designed using shape optimization by moving and scaling rectangles in the geometry. The irises of the initial geometry are optimized to ensure good bandpass response and out-of-band rejection, while maintaining the double mirror symmetry.
