Stray Current Pipeline Corrosion
Application ID: 54761
The impressed current cathodic protection (ICCP) system is often employed to mitigate corrosion of buried pipelines in the oil and gas industry. Metallic objects such as buried pipelines, which are present within the current flow of the ICCP system, may suffer from the stray current interactions leading to accelerated corrosion.

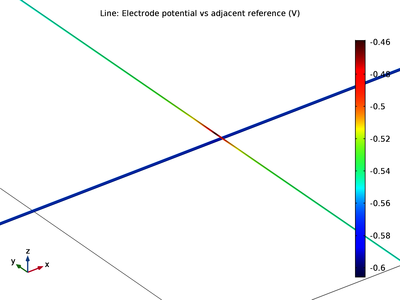

This tutorial model demonstrates stray current corrosion of a buried pipeline, which is in the vicinity of a crossing pipeline that is protected by an ICCP system. The model calculates and predicts the corrosion rate of the nonprotected pipeline, which is much higher close to the crossing.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
- COMSOL Multiphysics® and
- either the Corrosion Module, or Electrodeposition Module
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
