Design and Analysis of Electro Static Drive (ESD) for the AEI 10 m Prototype
Published in 2015

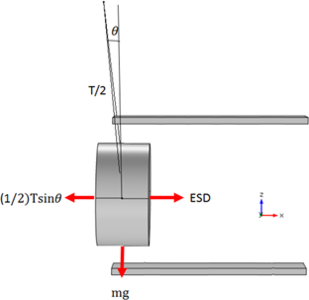

We calculate the maximum force acting on the mirror and found it to be 0.54 µN at 700 V. The force magnitude can be improved by increasing voltage and diminishing the separation between plates. The force along X, Y-axis acts towards the center of the plates and in Z direction towards the plates to which the mass is closer.
Download
- baig_poster.pdf - 0.77MB
- baig_abstract.pdf - 0.15MB
