Mesh error - Intersecting edge elements
Posted Jun 10, 2016, 4:56 a.m. EDT Geometry, Mesh, Structural Mechanics Version 5.2 2 Replies
Please login with a confirmed email address before reporting spam
Hi All,
I have imported a complex shape abd when I try to mesh it an error occurs as follow,
"Failed to generate mesh for face.
- Face: 3
Intersecting edge elements."
Both featuring and repair & virtual operations functions have been used but were not successful. Appreciate if anyone can point me to a right direction on how to resolve this issue. The model (only geometry) and design were attached .
Thank you.
--
Alvin
--
Alvin
I have imported a complex shape abd when I try to mesh it an error occurs as follow,
"Failed to generate mesh for face.
- Face: 3
Intersecting edge elements."
Both featuring and repair & virtual operations functions have been used but were not successful. Appreciate if anyone can point me to a right direction on how to resolve this issue. The model (only geometry) and design were attached .
Thank you.
--
Alvin
--
Alvin
Attachments:
2 Replies Last Post Jun 13, 2016, 11:00 a.m. EDT
Please login with a confirmed email address before reporting spam
Posted:
8 years ago
hello
Right click on "Geometry 1" and choose:
Virtual operations --> ignore edges
Add all the unnecessary edges as shown in the attached picture
its not perfect yet but it clears the way forward :-)
Dara
Right click on "Geometry 1" and choose:
Virtual operations --> ignore edges

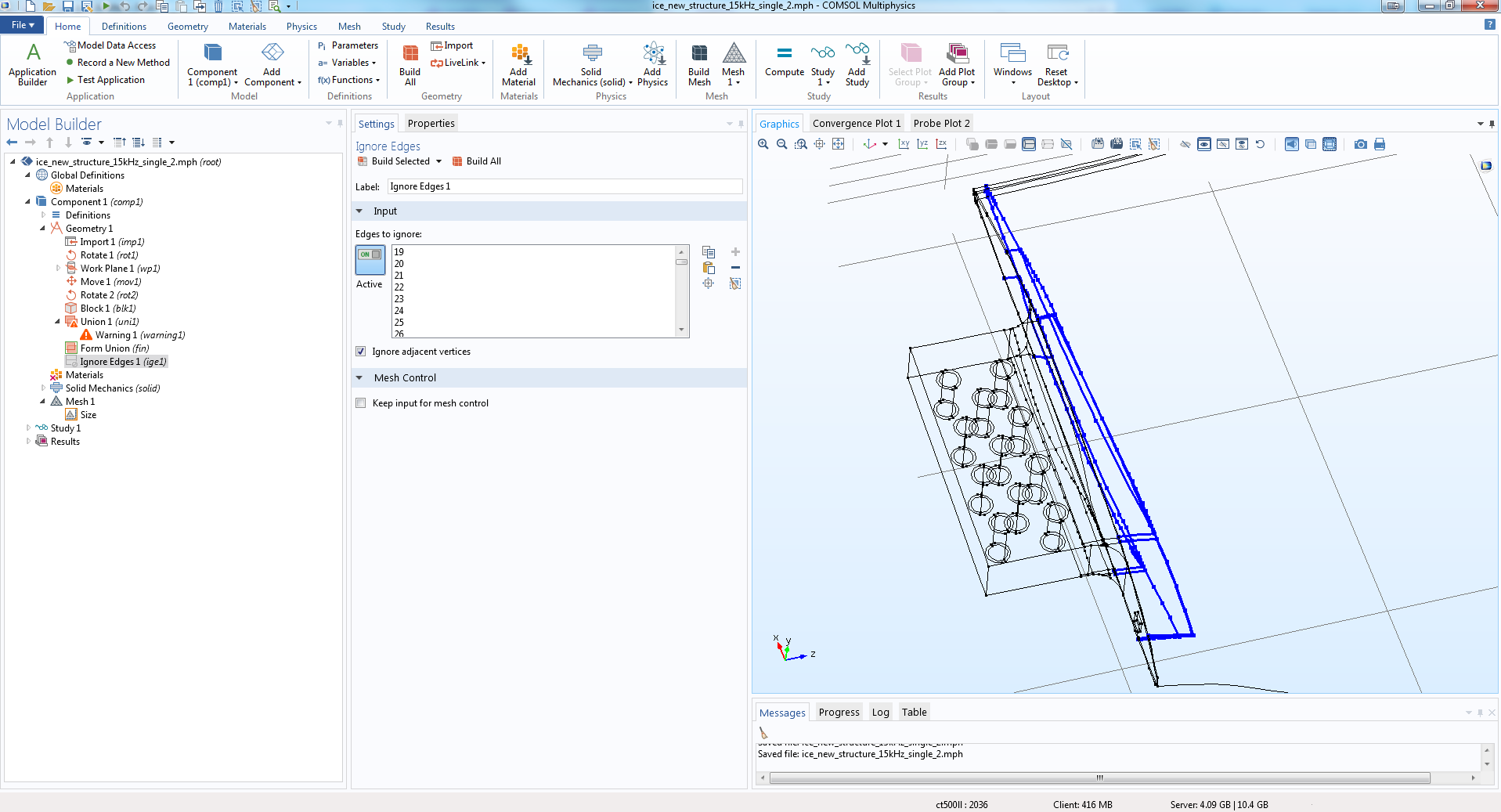

Add all the unnecessary edges as shown in the attached picture
its not perfect yet but it clears the way forward :-)
Dara
Attachments:
Please login with a confirmed email address before reporting spam
Posted:
8 years ago
This works. Many thanks.
--
Alvin
--
