VSS History of a Particle

Posted Mar 13, 2018, 3:01 p.m. EDT Computational Fluid Dynamics (CFD), Particle Tracing for Fluid Flow Version 5.3a 0 Replies

Patrice Seifriz
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello,

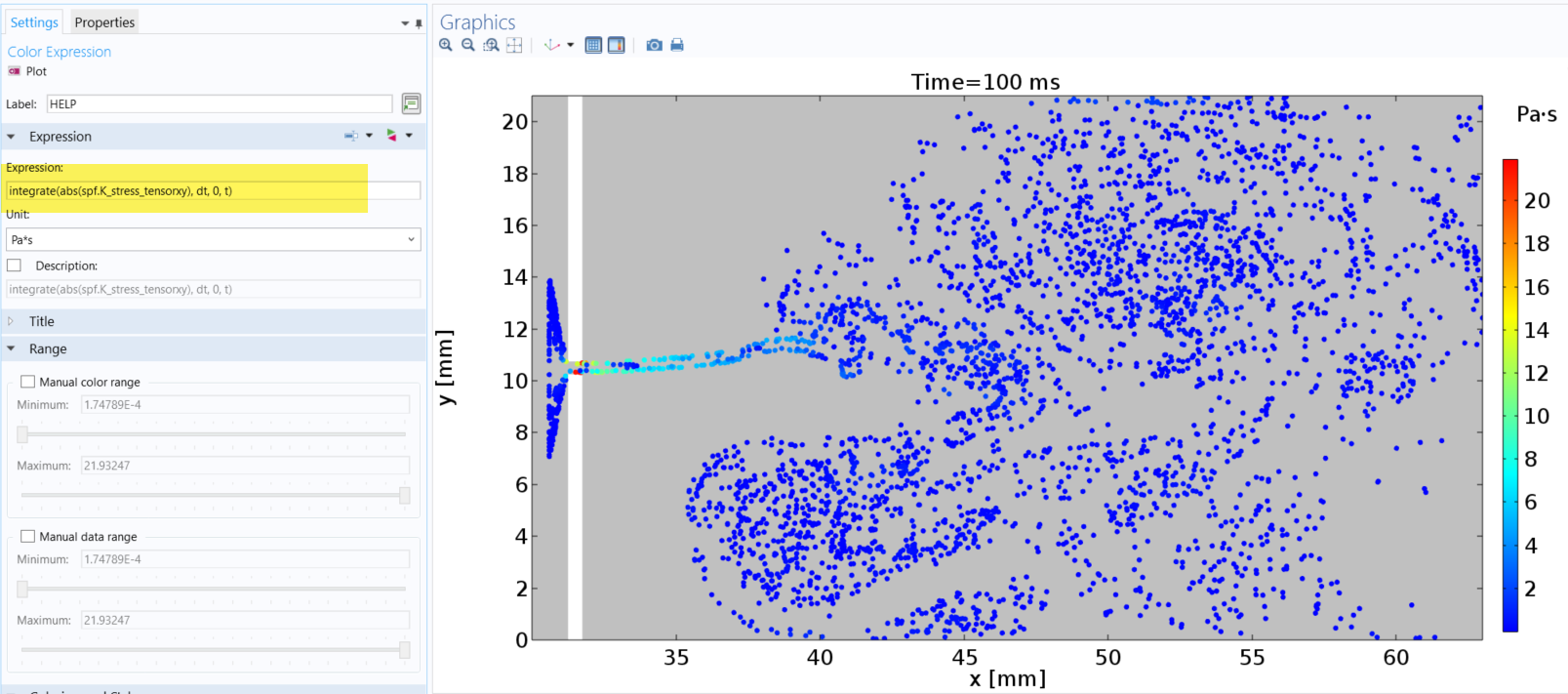

I’m simulating the flow of particles though a simple 2D tube with a centered orifice by using the particle trajectory module (see fig2). The simulation works well and the results are nice.

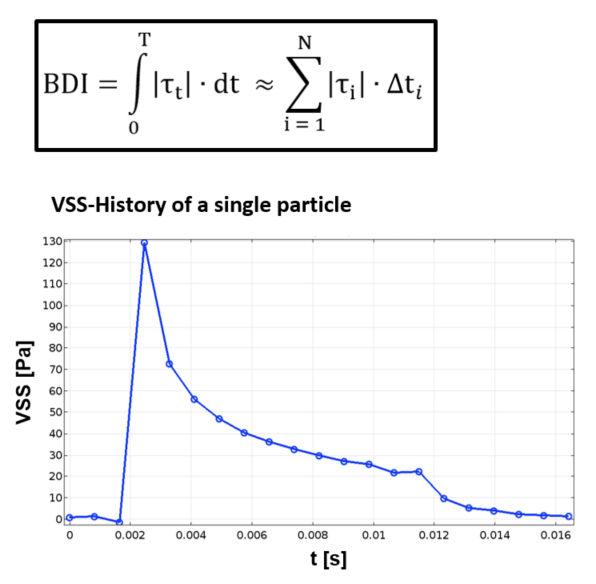

But now, I’m trying to calculate the viscous shear stress history of a particle over the exposure time according to the attached formula (fig1) and visualise the results directly in COMSOL.

Which expression to I need to calculate the summation of the instantaneous shear stress times the exposure time? And visualise the results with a particle trajectory surface plot with color expression.

Thanks,

Patrice

Attachments:

0 Replies Last Post Mar 13, 2018, 3:01 p.m. EDT
COMSOL Moderator

Hello Patrice Seifriz

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
