image postprocessing

Posted Nov 9, 2020, 2:01 a.m. EST Version 5.5 1 Reply

Zichao Guo
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

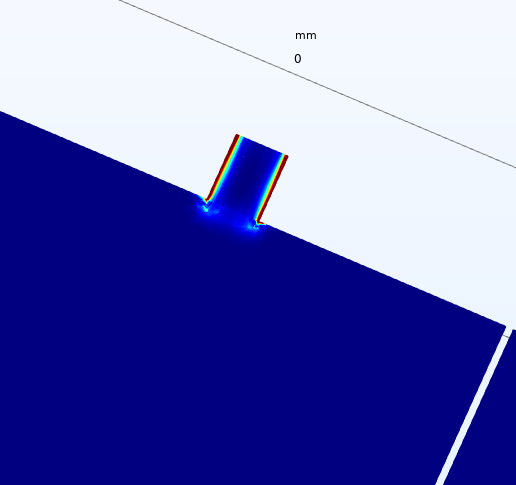

How to process the image from Figure 1 to Figure 2 style?

Attachments:

1 Reply Last Post Nov 9, 2020, 10:42 a.m. EST
Gunnar Andersson COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 4 years ago Nov 9, 2020, 10:42 a.m. EST

I suggest that you create a Surface dataset and use it in a 2D plot group.

I suggest that you create a Surface dataset and use it in a 2D plot group.
