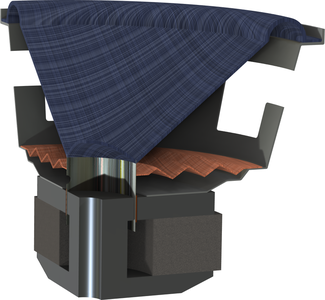

Loudspeaker Driver in 3D — Frequency-Domain Analysis
Application ID: 92351
This tutorial shows how to best solve full 3D vibro-electroacoustic multiphysics models of loudspeakers. The model is based on a 3D representation of the existing 2D axisymmetric Application Library model loudspeaker_driver found in the software. The setup of the physics is essentially the same in this 3D version as in the 2D axisymmetric version. In the 3D model an iterative solver suggestion is selected for the frequency domain analysis. This suggestion ensures that the coupled acoustic, structure, and electromagnetic problem is solved efficiently.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
